Detail HP Series Needle Pipe Fitting & Valves

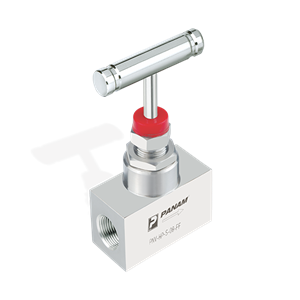

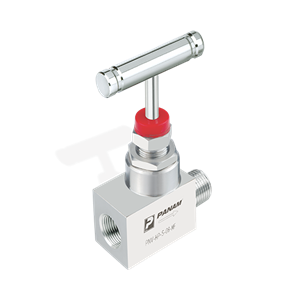

HP Series Needle Valves
Features
Needle High Pressure Needle Valve is One piece design construction.
Needle Valves are available in SS 316, Duplex, Monel & Hastelloy Materials in forged & bar stock construction.
Variety of end connections – Male & Female NPT, BSPP, BSPT, ISO tapered pipe ends.
Maximum working pressure up to 10,000 psig. (690 bar).
Size ranging from 1/8″ to 3/4”
PTFE standard gland packing, Alternate Graphoil packing for high temperature. Max. temperature upto 538°C (1000°F).
Non-Rotating Vee-tip / Ball tip provides repetitive & leak tight shut-off.
NACE certification available upon request.
Heat code traceability.
