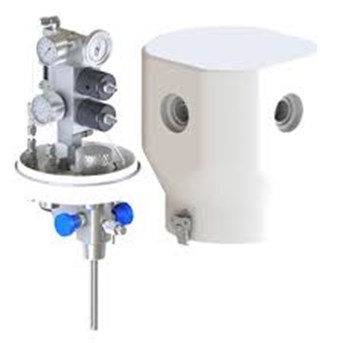

Natural Conditioners for Gas Analyzer

Pitot style probe design
Liquid coalescer and filtration barrier
Low internal gas volume
Multi-stage heating design and regulation
Sample gas outlet pressure and temperature indicator
Liquid shut-off valve (Optional)

Self-generated flow reduces stagnant inlet gas to improve real time sampling
Self-generated flow maintains inlet gas temperature, reducing phase change
Eliminates saturation of liquid barrier
Reduces flashing of condensate
Prevents supply pressure effect to maintain consistent outlet pressure
Reduces cooling effect from pressure drop
Easy installation with compact footprint
Emergency shut-off prior to analyzer (Optional)

Specifications
SCHS-3
More Information
Product Category :
Natural Gas Sampling
Natural Gas Conditioners for Analyzer
Materials of Construction :
316/316L Stainless Steel and 304 Stainless Steel, Anodized Aluminum
Seal :
FKM
Maximum Inlet Pressure :
3600 psig (248.21 barg)
Operating Temperature :
Ambient -50 °F to 120 °F (-45 °C to 48 °C )
Process 32 °F to 300 °F (0 °C to 148 °C)
Pressure Control Ranges :
0–50 psig (0–3.4 barg)
0–100 psig (0–6.8 barg)
0–200 psig (0–13.7 barg)
Electrical Connection :
½" FNPT
Flow Coefficient (Cᵥ) :
0.001
Power :
80 W @ 110/220V AC
25 W @ 24V DC
Sample Outlet :
⅛ Tubing
Probe Length :
Standard for 2" and 3" Pipe
Standard for 4" and 6" Pipe
Standard for 8", 10", and 12" Pipe
Standard for 14", 16", and 18" Pipe
Weight :
20 lb
Electrical Components Approval Available :
CSA Class I, Div. 1, Groups B, C, and D, T3 / ATEX II 2 G Ex d IIC T3, IP68
