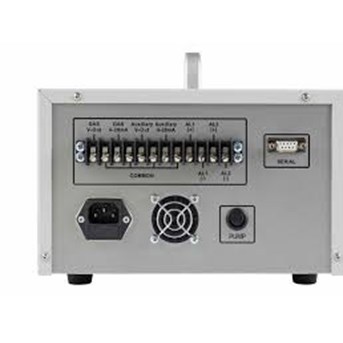

Rapidox 1100 Methane Gas Analyzer

The Rapidox 1100-M methane (CH4) gas analyser is the company’s most cost-effective and versatile range of CH4 gas analysers fitted with an infra-red gas sensor or a tuneable laser diode sensor depending on the application.

The infra-red (IR) sensor is the most common and preferred solution for methane (natural gas) measurement providing fast and accurate gas analysis over the range 0-1% to 0-100% CH4 and is particularly suitable for aggressive industrial applications as the sample gas is filtered for dust and particles and is non-condensing. IR sensors are highly suitable for measuring gases that absorb infra-red light such as CO2, CO & CH4 particularly in percent levels of concentration. Different sensor lengths are available to allow different ranges of the gas to be detected hence the importance of selecting the correct range for your application.

Product Specification
Type
Measurement
CH4 Sensor Range
0-1%, 0-5%, 0-10%, 0-30% or 0-100%
CH4 Sensor Accuracy
± 2% full scale accuracy
CH4 Sensor Response
Approximately 20 sec for a 90% response
CH4 Sensor Life Expectancy
>5 years
Sample Connections
4mm ID / 6mm OD nipple type Rectus or Swagelock Front or rear positioning
Calibration
Requires 2 user selectable gas compositions Normally zero and span
Warm-up Time
5 minutes
Voltage Outputs
0-10V, user programmable
Current Outputs
4-20mA linear, user programmable
Digital Outputs
RS232 (RS485 option available): data streamed on demand/Modbus RTU/Ethernet
Max Gas Pressure
500-1500 mbar absolute
Max Gas Sample Temperature
50°C
Operating Temperature
5°C to 35°C
Pump Option
Long life diaphragm pump variable speed 0-1.2 litres per min
Ejector Option
Vacuum ejector fitted, running off inlet pressure
Display
20 x 4 character OLED display
Supply Voltage
90-260VAC, 50/60Hz
Analyser Dimensions
Bench: 150mm(H) x 247mm(W) x 250mm(D) Panel: 300 x 4U (177mm(H) x 300mm(W)) Multiplex: 150mm(H) x 263mm(W) x 250mm(D)
Weight
3.5kg (4kg with bezel)
