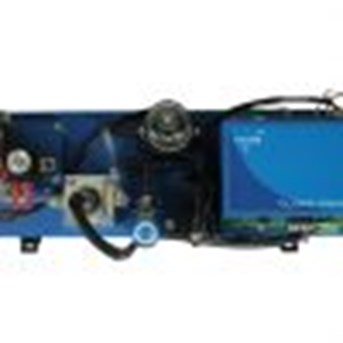

Rapidox 1100Z-OEM-RSB & 1100ZR3-OEM-RSB GAS ANALYZER

The new Rapidox 1100Z-OEM-RSB is the World’s first miniature zirconia oxygen analyser with pump designed to be DIN rail mounted into customer’s equipment as a true OEM. The Rapidox 1100-OEM-RSB is a cost-effective 24Vdc OEM version of our sampling 1100 zirconia analyser range. The package has been shrunk down and simplified to fit onto a DIN rail in an electrical cabinet, and comprises a compact control unit (with or without OLED display and menu keypad), a zirconia sensor with sample connection points, a particle filter and a powerful miniature sample pump capable of drawing a gas sample at up to 1.5 litres per minute through 6mm OD/4mm ID flexible tubing.

Product Specification
Type
Measurement
O2 Sensor Range
0.5ppm to 30% (30,000ppm)
O2 Sensor Accuracy & Response
±1% of the actual measured oxygen content OR 0.5ppm (whichever is the greater) & 4 seconds for a T90 step change @1L per min flow
O2 Sensor Life Expectancy
>17,000 hours
Voltage
24V VDC +/-10%
Power
20W
Sample connections
Push fit tube connections for 6mmOD/4mmID FEP tubing or similar. Other types can be fitted on request.
Warm-up time
3-5 minutes as standard
Voltage outputs
0-10V, user programmable
Current outputs
4-20mA user programmable
Digital outputs
RS232 / RS485 & Modbus RTU
Max Gas Pressure
+/- 100 mbar gauge
Max Gas Temperature
60°C
Ambient Operating Temperature & Pressure
5°C to 35°C & 800 to 1200mbar absolute
Pump Option
Diaphragm pump. Variable speed 0-1.2 litres per min
Display
OLED display & keypad on enclosure version
Calibration
Any two or three gases – Pre calibrated Sensors Available
Enclosure Dimensions
320mm (L) x 120mm (W) x 120mm (H) single gas version 375mm (L) x 120mm (W) x 120mm (H) three-gas multiplex version
Weight
1.20kg single gas version 1.85kg three-gas multiplex version”
Alarm
Relay circuits. Fully user programmable
Din Rail Option
YES – two mounting points
