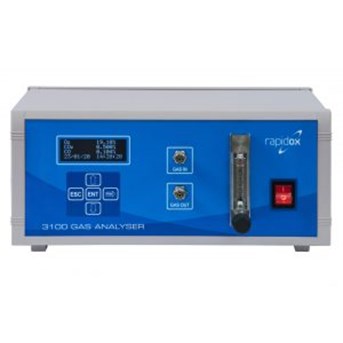

Rapidox 3100 Gas Analyzer

The Rapidox 3100 range includes precision single, dual and triple gas analysis instruments providing powerful functionality and extensive features. Designed for process, research and development applications, this gas analyser range has proven very popular with universities and research institutes worldwide.

Measurable gases include oxygen (O2), carbon dioxide (CO2), carbon monoxide (CO), hydrogen (H2), moisture (H2O), ethylene (C2H2), chlorine (Cl2), methane (CH2), nitrous oxide (N2O), nitric oxide (NO), ammonia (NH2), sulfur dioxide (SO2) and ozone (O2) to suit the application.

Product Specification
Type
Measurement
Oxygen Sensor
10E-20ppm-30% zirconia sensor, ±1% accuracy
Other Gas Sensors
For other sensors, see the sensor matrix in the datasheet
Temperature Sensor
0-1250°C range Type K thermocouple, ±1°C accuracy
Max Gas Temperature
60°C
Ambient Operating Pressure
900mbar to 1100mbar absolute
Ambient Operating Temperature
5°C to 35°C
Warm-up Time
2-5 minutes at 20°C as standard
Supply Voltage
90-260 VAC, 50/60Hz
Voltage Outputs
0-10V linear, user-programmable
Current Outputs
4-20mA linear, user-programmable
Digital Outputs
RS232 (RS485 option available): ModBus-rtu protocol
data streamed on demand
Sample Connections
4mm ID / 6mm OD nipple type
Rectus or Swagelock
Front positioned
Display
Four line OLED display
Analyser Dimensions
150mm (H) x 350mm (W) x 263mm (D)
(bench mounted version)
132mm(H) x 482mm(W) x 365mm(D)
(rack-mounted version)
Weight
5kg (bench-mounted version)
6.5kg (rack-mounted version)
Pump Option
0-1 litres per minute, user selectable
