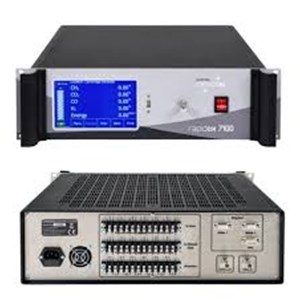

Rapidox 7100 Blue Gas Analyzer

The Rapidox 7100 Blue Hydrogen (H2) Analyser is a high specification rack
mountable, or bench top instrument designed for the analysis and calculation of calorific
value for hydrogen produced from biomass gasification, zero-CO2-emission methane
pyrolysis, suitable either in a research laboratory or on-site.

Product Specification
Type
Measurement
H2 (hydrogen)
0-100% TCD sensor with background gas correction. ±1% full scale accuracy. 0.1% resolution
CO (carbon dioxide)
0-2000ppm, 0-2%, 0-10% or 0-100% Infra-red sensor. ±1% full scale accuracy. 0.1% resolution
CH4 (methane)
0-5% (LEL) or 0-100% TLD sensor. ±1% full scale accuracy. 0.1% resolution
CO2 (carbon monoxide)
0-5000ppm, 0-5%, 0-20% or 0-100% Infra-red sensor. ±1% full scale accuracy. 0.1% resolution
O2 (oxygen)
0-30% or 0-100% electrochemical sensor. ±1% full scale accuracy. 0.01% resolution
H2O Dewpoint (optional)
-60°C to +20°C or -100°C to +20°C Dewpoint sensor
Other gases
Contact us for further information
Normal Operating Conditions
Temperature 0°C to 40°C / Humidity 10 - 90% RH / Pressure 900 to 1100 mbar absolute
Sampling
Fixed or continuous sampling modes
Warm-up Time
3-4 minutes at 20°C
Voltage Outputs
0-10V, user programmable
Operating temperature
-10°C to 40°C
Current Outputs
4-20mA linear, user programmable
Digital Outputs
RS232 (RS485 option available) Data streamed on demand. Modbus RTU/Ethernet
Data Output
Excel compatible data via USB memory stick
Alarms
Relay circuits, user programmable
Sample Connections
6mm OD or 1/4" Swagelok fittings. Rear positioning
Calibration
Calibration by the user using zero and span gases An optional Auto-Cal system can be installed on certain models
Display
7" (180mm) full-colour LCD with touchscreen operation; resolution 0.01ppm or 0.01%
Supply Voltage
90-260 VAC, 50/60Hz
Analyser Dimensions
Rack Mount: 132mm(H) x 482mm(W) x 365mm(D) / Benchtop: 180mm (H) x 570mm (W) x 345mm (D)
Weight
Rack Mount: 6.5kg / Benchtop: 6.5kg
