Detail HB Series Ball Pipe Fitting & Valves

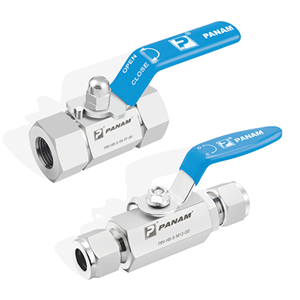

HB Series Ball Valves
Features
Hex Body Ball Valves are available in Two-Piece Design for minimizing the leakage.
Ball Valves are available in SS 316, Duplex, Monel & Hastelloy Materials.
Variety of end connections – Male & Female NPT, BSPP, BSPT & PANAM® tube fittings.
Working pressure 2000 psi (138 bar), 6000 psi (414 bar) & 10,000 psig. (689 bar).
Floating ball design ensures leak proof shut-off at high pressure.
Size ranging from 1/8″ to 1″.
Delrin, PTFE, PEEK & KEL-F seat available.
Anti blow out internally loaded stem for safety.
Locking handle option available in selected sizes.
NACE certification available upon request.
Heat code traceability.
