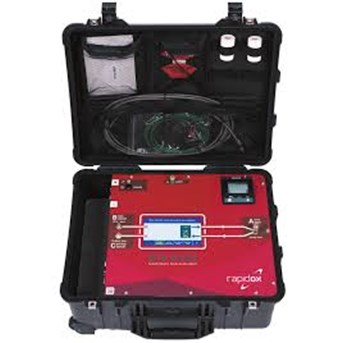

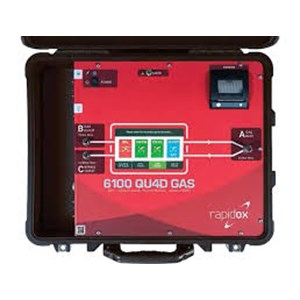

Rapidox 6100 QU4D Multi-Gas Pumpback Gas Analyzer

The new Rapidox 6100 QU4D is a fully automatic zero-emissions multi-gas pumpback analyser for measuring gas compartments containing SF6 – C4-FN – C5-FK – Clean Air, all combined in a single portable instrument.

The modular design allows the purchase of only the gas types required with the potential to upgrade the instrument in the future. The Rapidox will measure the gas purity, water-content and contamination gases in each gas type in all current high voltage switchgear, circuit breakers and transformers as well as gas bottles. It is a fully portable lithium battery powered instrument.

Product Specification
Sensor
Specification
Accuracy
Calibration
Lifespan
Sensor Type
SF6 Sulphur Hexafluoride
0-100%
±0.5% accuracy
Every 12-24 months
>5 years
Infrared (IR)
H2O Dew Point
-60oC to +20oCdp @Patm (10 – 24,000ppmV) Reading is corrected to either RT or 20oC
±2oCdp of reading
Every 12 months by Sensor Exchange
2-3 years
Polymer
SO2 Sulphur Dioxide
0-100, or 500ppm
±2% full-scale
Every 12-24 months
2-3 years
Electrochemical
HF Hydrogen Fluoride
0-10ppm OR 0-30ppm
±2% full-scale
Every 12 months (Using HCI gas)
Up to 4 years
Electrochemical
CF4* Tetrafluoromethane
0-80%
±1% of full reading
N/A
N/A
(measured by balance of SF6 + Air reading)
H2S Hydrogen Sulphide
0-100ppm
±2% full-scale
Every 12-24 months
Up to 4 years
Electrochemical
CO Carbon Monoxide
0-1,000ppm
±2% full-scale
Every 12-24 months
Up to 4 years
Electrochemical
Air / O2
0-20%
±5%
Every 12-24 months
Up to 5 years
Electrochemical O2 scaled to read as Air
CO2 - Carbon Dioxide
0-200%
±0.5%
Every 12-24 months
5 Years
Infrared (IR)
C4-FN & C5-FK
0-100%
±5%
Every 12-24 months
5 years
Infrared (IR)
No2 - Nitrogen Dioxide
0-100ppm
±2% full-scale
Every 12-24 months
Up to 4 years
Electrochemical
